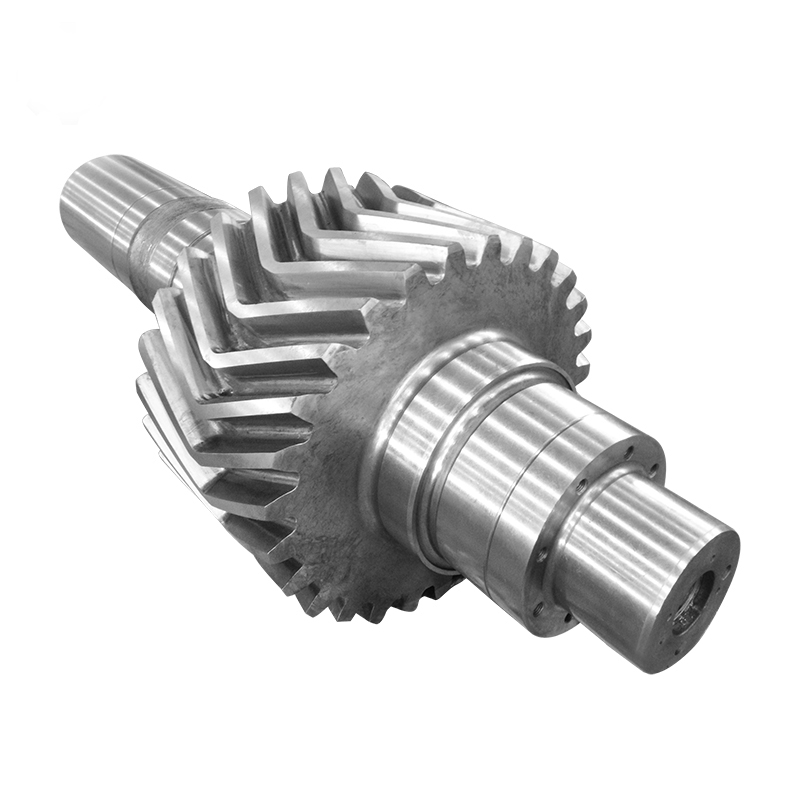

Herringbone gear shaft
The herringbone gear shaft is a transmission element with a special design, and its core feature lies in its structure. The left and right ends are processed into left-handed and right-handed teeth respectively. This design makes the two gears rotate in opposite directions, but the force is evenly applied, thus achieving efficient torque transmission. In order to meet the needs of different customers, our company supports non-standard customization and can design and produce according to the specific requirements of customers. This flexibility enables the herringbone gear shaft to be more widely used in various mechanical transmission systems.
Produce description
The product advantages of the herringbone gear shaft are significant. It has the characteristics of strong load-bearing capacity, high efficiency, long service life and high reliability. In addition, its transmission is stable and the noise is low. It can work stably in complex mechanical systems and meet the needs of various application scenarios.
In terms of processing technology, the manufacturing process of the herringbone gear shaft is complex and delicate. First, it is necessary to accurately calculate and design the various parameters of the gear, including the number of teeth, module, tooth surface accuracy, etc. Then, cutting and grinding are carried out by high-precision machine tools to ensure the accuracy and surface quality of the gear. Finally, strict quality inspection is required to ensure that each product meets the standards.
| Material | 42 CrMo, 40CrNiMo，40Cr、40CrNi 20GrMnTi carburizing and quenching, etc. The surface roughness can reach 0.8.The hardness of the shaft can reach HRC60, and non-standard customized services can also be provided. |
| Heat treatment | Normalizing,Annealing,Quenching&Tempering,SurfaceQuenching,Case hardening |
| Surface treatment | quenching and tempering+quenching |
| Product specification | capable of producing various forgings with diameter of 100mm-6000mm |
| Product material | carbon steel, alloy steel, stainless steel, etc |
| Process | forging, CNC processing |
| Shaft category | smooth shaft, spline shaft, spur gear shaft, helical gear shaft, etc. The shaft can be processed according to the drawing |
| Processing method | turning, milling, planing, grinding, drilling, etc |
| Technical parameters | according to relevant standards or drawings and requirements provided by customers |
| Product features | made according to customer drawings, transparent price, qualified size, long service life |
| Application | IEngineering machinery, petroleum machinery, marine machinery, agricultural machinery, wind power equipment, chemical equipment,pressure vessels, nuclear power, new energy, metallurgy and other industries. |
| Product advantage | 1.Heavy load capacity,long lifespan. 2.High precision,large diameter and module . 3.stable transmission, low impact, vibration and noise |
| Packing details | 1. Filling with anti-rust oil 2. Corved with Plastic paper 3. Corved with kraft paper 4. Corved with Blue tie 5. Put in wooden box |

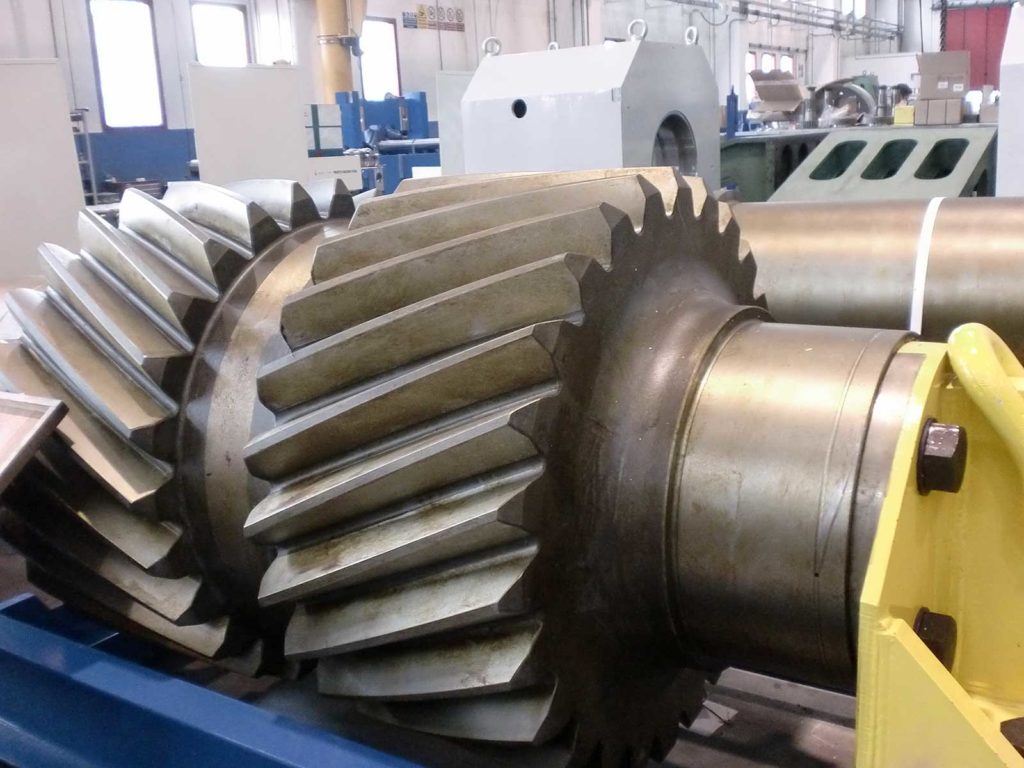

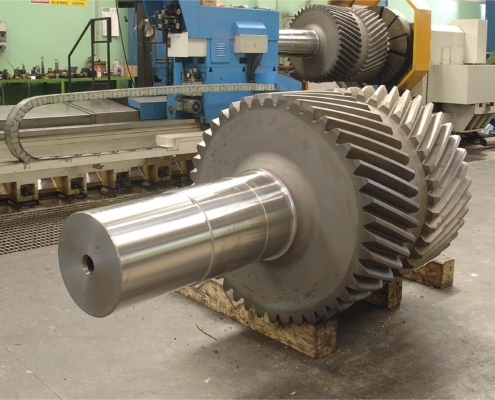

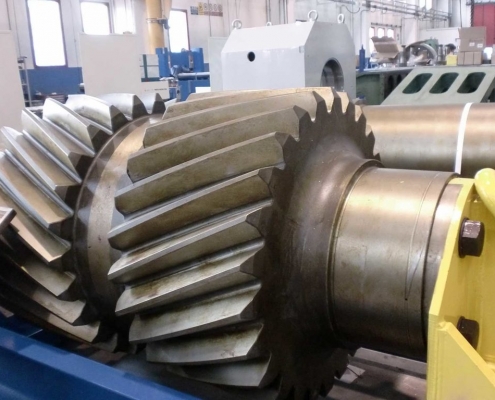

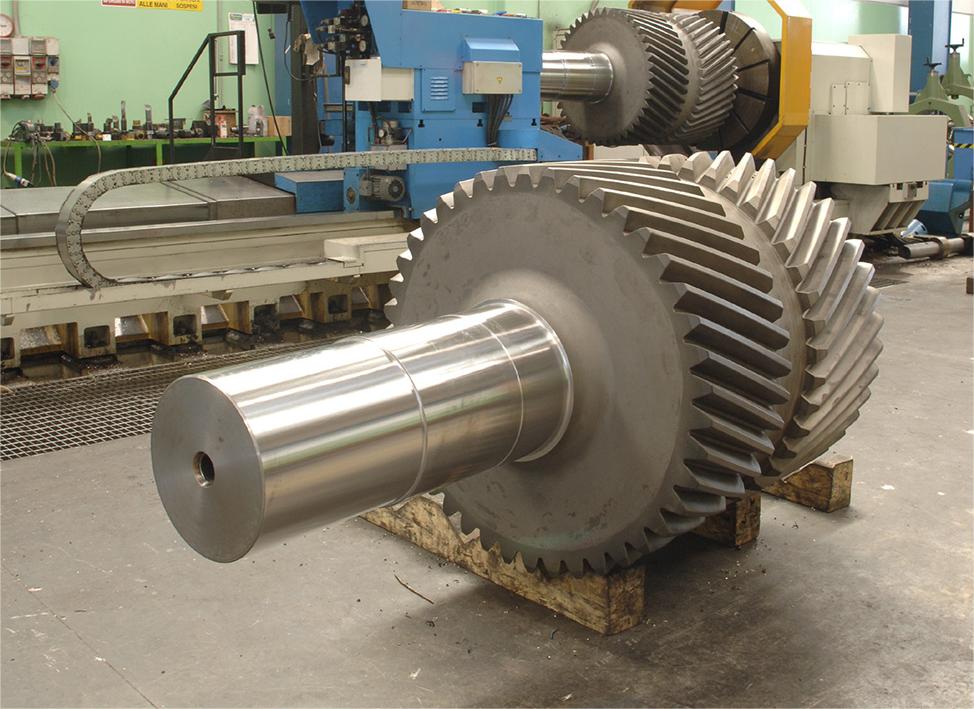

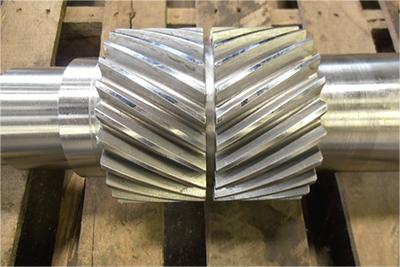

Product display
Advantages
1.Quality Assurance
High grand raw material selection and strict material inspection.The equipment can meet all the processing procedures and fully achieve production according to the drawing.
2.Reasonable Price
The price is the most favorable under the same quality.The quality is the best under the same price.
3.Delivery Time Guarantee
Effcient production arrangment and inspection to guarantee the timely shippment.
4.Team Service
Engneers with more than ten years of experience in the industry. technical support can be provided before, during and after sales. Delivery and goods tracking support can be provided 24*7 online service support can be provided to solve doubts.
About us
Our Customers
FAQ
1.Q: Are you trading company or manufacturer ?
A: We are professional manufacturer with 20 years’ experience.
2.Q: How long is your delivery time?
A: Generally it is 4-5 days if the goods are in stock. or it is 45 days if the goods are not instock, Also it is according to quantity.
3.Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample, it is extra.
4.Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance, balance before shipment.
5.Q: Can you provide special customization according to the working conditions?
A: Sure, we can design and produce for different working conditions.
6.Q: How about your guarantee?
A: We provide lifelong after-sales technical service.
