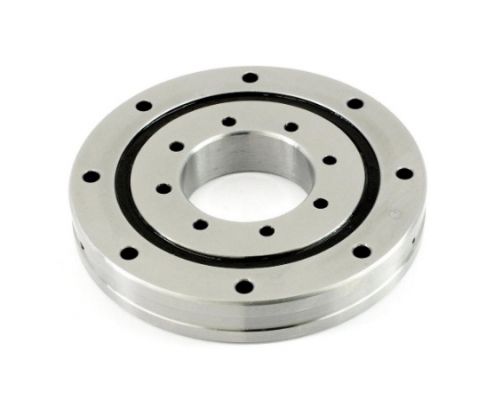

SX Series Cross Roller Slewing bearing

SX series cross roller bearing   Product Features HGB Crossed roller bearings are lightweight, compact bearings with thinnest possible inner and outer rings with high rigidity, because of its ver […]

SX series cross roller bearing

Product Features

HGB Crossed roller bearings are lightweight, compact bearings with thinnest possible inner and outer rings with high rigidity, because of its vertical arrangement of cylindrical rollers with a 90°V groove through the separate spacers in the deep groove rolling surface. This special design allows just one bearing to carry loads in all directions including radial, axial and moment loads.

Series Introduction

SX standard type is a bearing similar to RB standard type. The two separable outer rings are connected by locking ring.

Applications

  • Industrial Robotic arm, Reducer drive
  • Precision Turntable, CNC rotary table
  • Rotation part of Machine tools
  • Inspection instrument, Medical equipment
  • Aviation equipment, Military radar etc

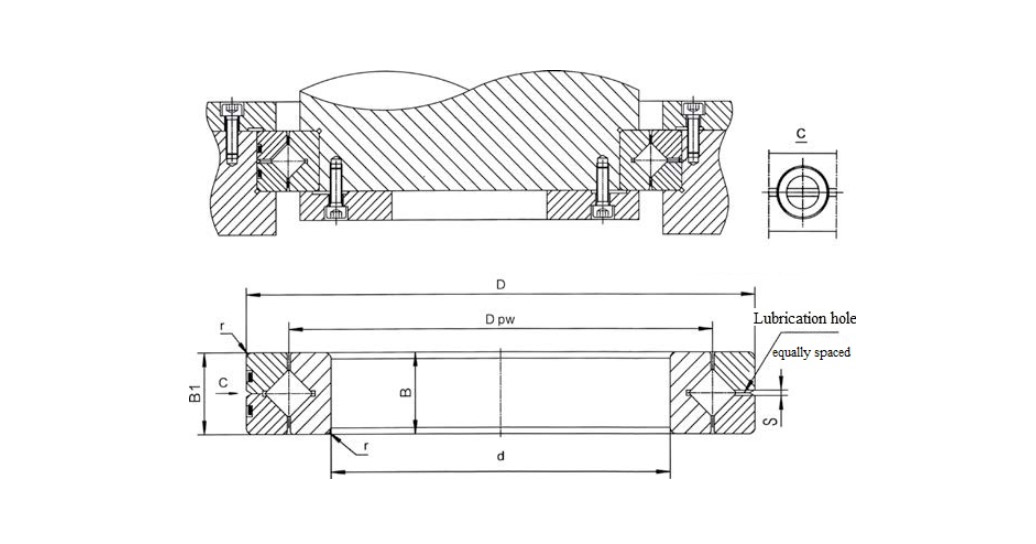

SX-Series(biaoge

TYPE Inner diameter Outer diameter Pitch diameter Height Chamfer Basic rated load(Axial) Basic rated load(Radial) Weight
d D Dpw B r Ca Kn Coa Kn Cr Kn Cor Kn KG
SX011814 70 90 80 10 0.6 18 60 12 30 0.3
SX011818 90 115 102 13 1 26 96 17 47 0.4
SX011820 100 125 112 13 1 28 106 18 52 0.5
SX011824 120 150 135 16 1 41 153 26 75 0.8
SX011828 140 175 157 18 1.1 64 237 41 116 1.1
SX011832 160 200 180 20 1.1 69 272 44 133 1.7
SX011836 180 225 202 22 1.1 98 381 63 187 2.3
SX011840 200 250 225 24 1.5 106 425 68 208 3.1
SX011848 240 300 270 28 2 149 612 95 300 5.3
SX011860 300 380 340 38 2.1 245 1027 156 504 12
SX011868 340 420 380 38 2.1 265 1148 167 563 13.5
SX011880 400 500 450 46 2.1 385 1699 244 833 24
SX0118/500 500 620 560 56 3 560 2538 355 1244 44
