Large ring gear manufacturer

The large ring gear is a mechanical component used to transmit torque and rotational motion. It is usually made of materials such as high-strength alloy steel. It has high-precision tooth pitch and tooth shape, which can ensure smooth and accurate transmission.

Produce description

The large ring gear is a mechanical component used to transmit torque and rotational motion. It is usually made of materials such as high-strength alloy steel. It has high-precision tooth pitch and tooth shape, which can ensure smooth and accurate transmission. Big gear ring is widely used in machine tools, metallurgical equipment, chemical equipment, construction engineering and energy industries and other fields.

The processing technology of the large ring gear includes steps such as material preparation, turning prefabricated circles, segmenting the tooth space and dressing the tooth surface. First, choose the right material. Usually high strength alloy steel. Then, the outer circle of the workpiece is turned into a prefabricated circle by a lathe. Next, the surface of the prefabricated circle is divided into a certain number of tooth slots by a milling machine or hobbing machine. Finally, the tooth surface is trimmed by a gear milling machine or gear grinding machine to make it meet the specified accuracy requirements.

The large ring gear has unique advantages. First of all, it adopts a unique heat treatment technology to optimize the ring gear structure, improve the hardness, and greatly enhance the wear resistance and impact resistance of the product. That

Secondly, the large gear park is cast with high-strength steel and optimized according to the operating characteristics of the equipment, ensuring the stability of the components under long-term operation and extending the service life. In addition, a large number of Mass production is more efficient, the casting cycle is short, and the output quality is high.

Material C45,42Crmo,40Cr,20CrMnTi,Stainless steel and so on as per your requests
Heat treatment Carburzing,Induction,Flame,Nitriding……
Process Forging,Machining,Hobbing,Milling,Shaving,Grinding,Heating treating……
Tooth Profile spur gear/helical gear/customized
Gear Machining Gear Hobbing,Gear Milling,CNC Gear Milling,Gear Cutting,Spiral gear cutting,Gear Cutting
Gear precision Oridinary,8e,7e……
Warranty 12momths
Payment term T/T is our first choice
Application Industry Machinery,Manufacturing Plant, Machinery Repair Shops
Product advantage 1.Heavy load capacity,long lifespan.

2.High precision,large diameter and module .

3.stable transmission, low impact, vibration and noise

Packing details 1. Filling with anti-rust oil

2. Corved with Plastic paper

3. Corved with kraft paper

4. Corved with Blue tie

5. Put in wooden box

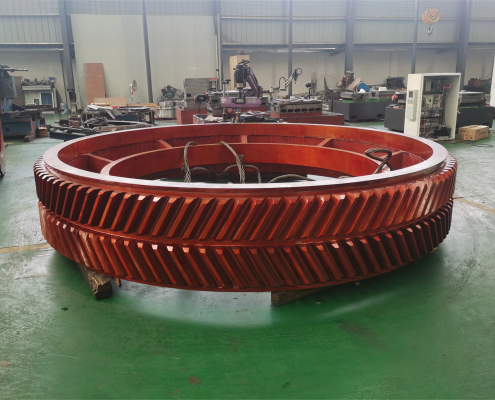

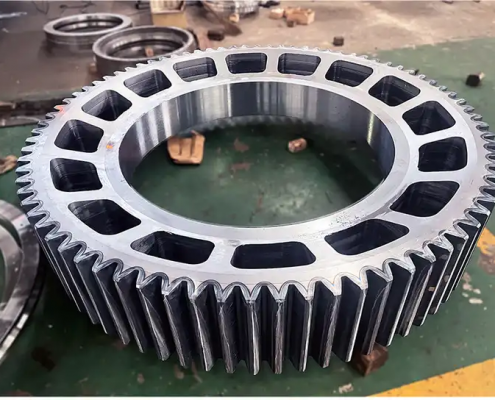

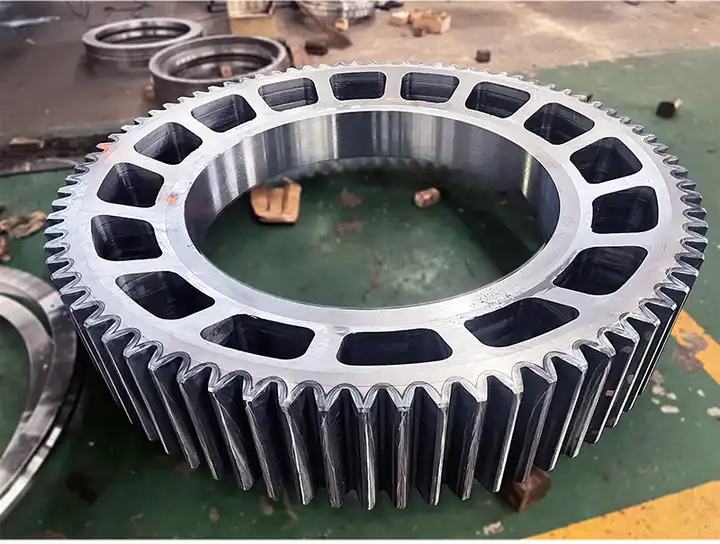

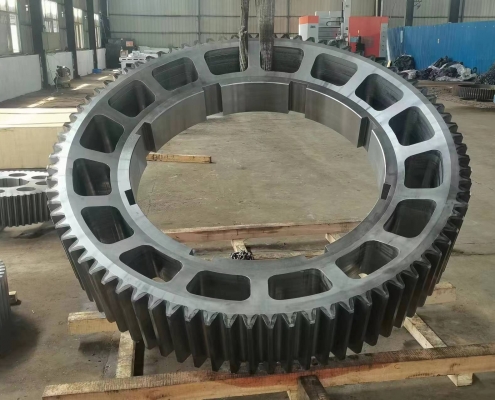

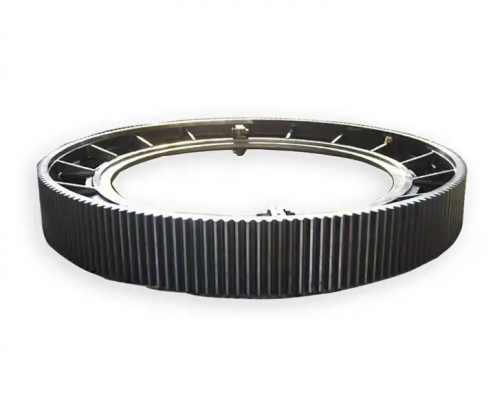

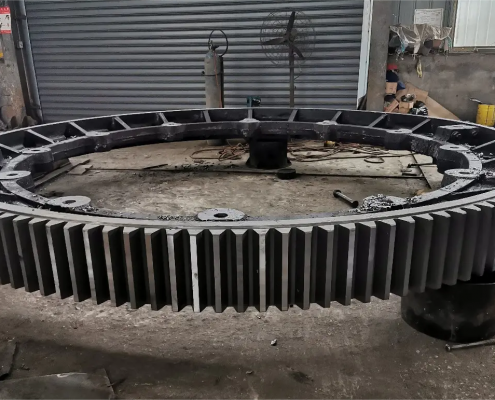

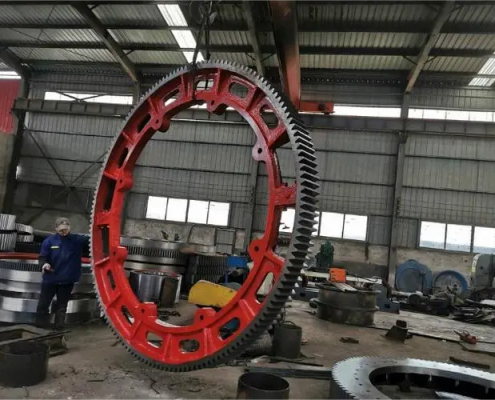

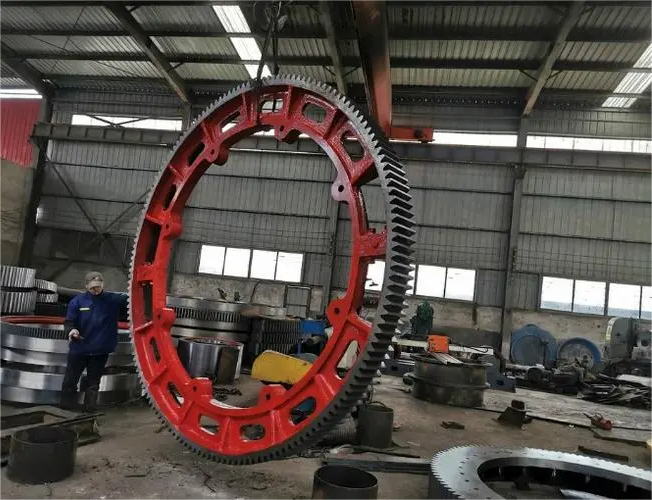

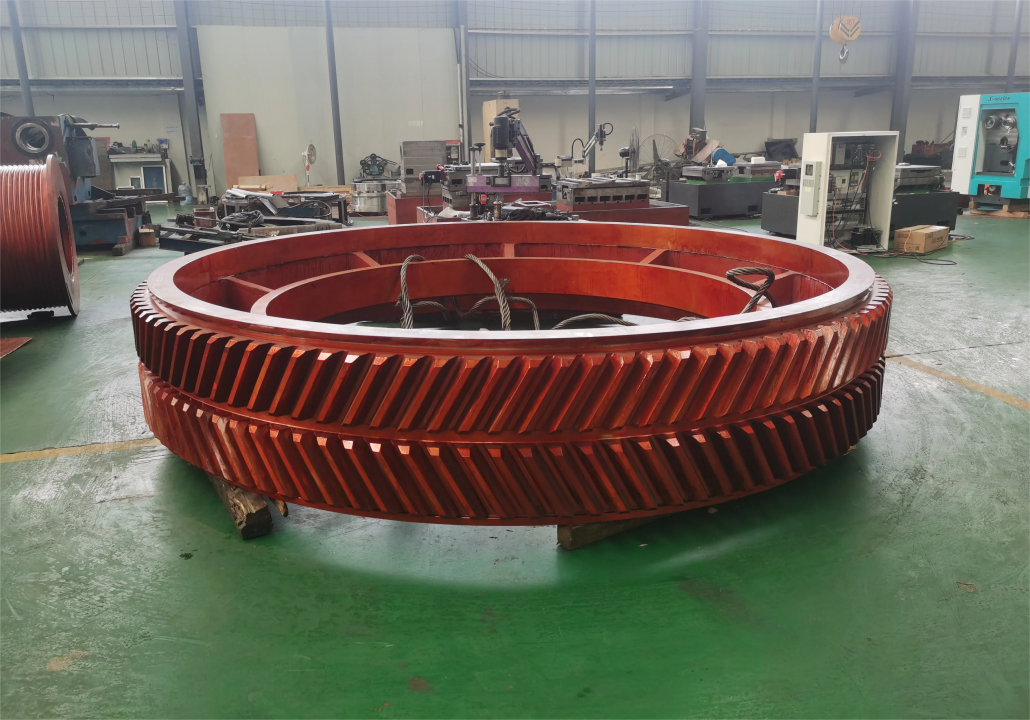

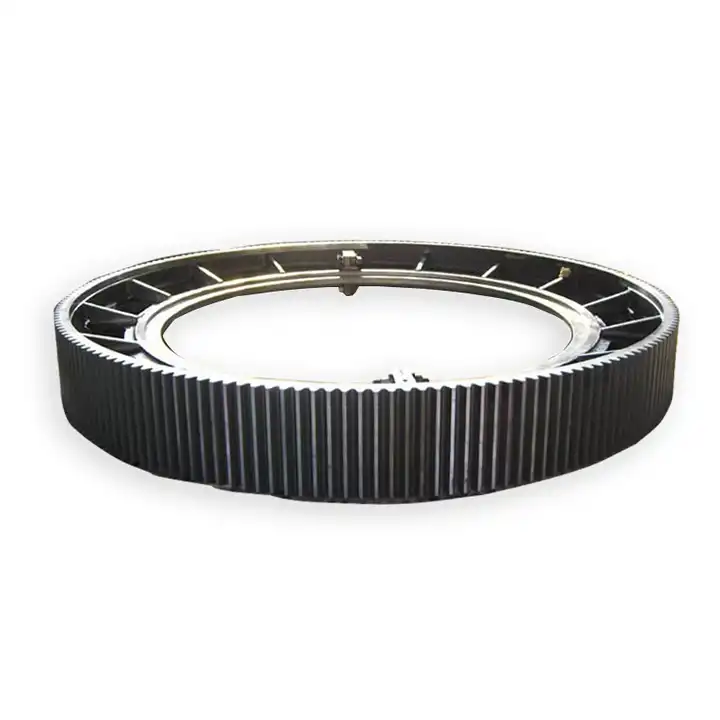

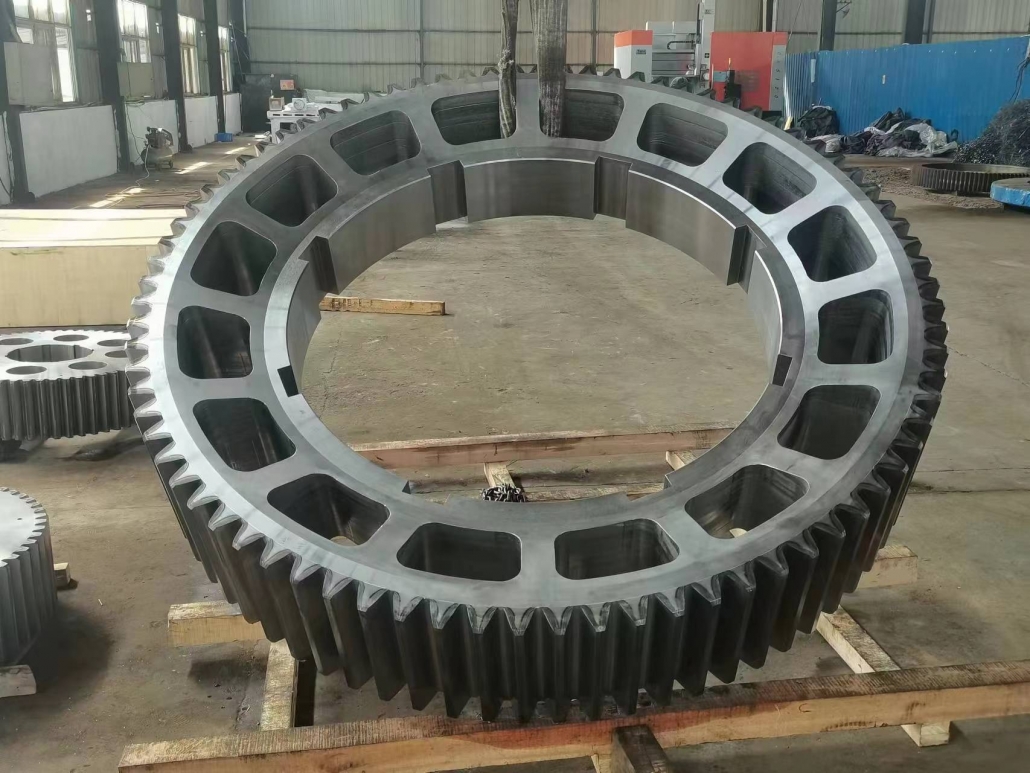

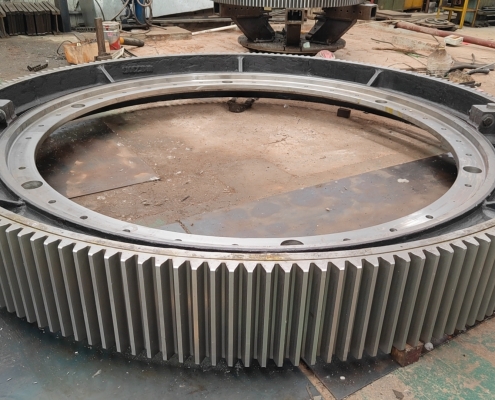

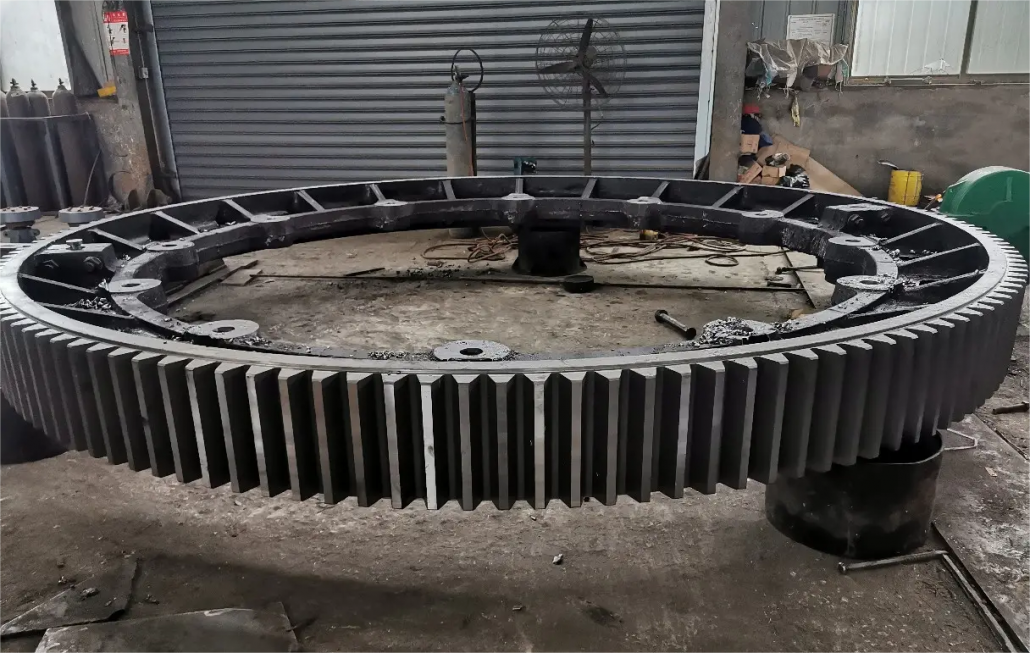

Product display

Advantages

1.Quality Assurance

High grand raw material selection and strict material inspection.The equipment can meet all the processing procedures and fully achieve production according to the drawing.

2.Reasonable Price

The price is the most favorable under the same quality.The quality is the best under the same price.

3.Delivery Time Guarantee

Effcient production arrangment and inspection to guarantee the timely shippment.

4.Team Service

Engneers with more than ten years of experience in the industry. technical support can be provided before, during and after sales. Delivery and goods tracking support can be provided 24*7 online service support can be provided to solve doubts

About us

Our Customers

Application area

Large ring gears are widely used in various industrial fields. In industrial machinery and equipment, large ring gears are used to transmit torque and rotational motion to drive various components and perform different process operations.

In construction projects, large ring gears are often used in concrete mixers, cranes and other construction machinery to transmit power and ensure the normal operation of the equipment. In the energy industry, large ring gears are widely used in power generation equipment, including wind turbines, hydroelectric generators, and thermal generators, to convert rotational motion into electrical energy. It is also widely used in rotary kilns, dryers, ball mills and other machines.
