RA series Cross roller bearing

(Separable Outer Ring Type for Inner Ring Rotation)

Product Features

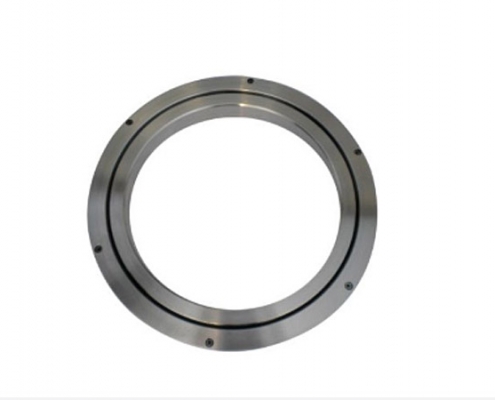

HGB Crossed roller bearings are lightweight, compact bearings with thinnest possible inner and outer rings with high rigidity, because of its vertical arrangement of cylindrical rollers with a 90°V groove through the separate spacers in the deep groove rolling surface. This special design allows just one bearing to carry loads in all directions including radial, axial and moment loads.

Series Introduction

RA thin type is a small and light weight bearing with a very thin wall thickness.

It carries heavy loads. Therefore, the bearing housing and pressure flange can be light weight. It is being used in rotary locations such as in robot hands. The outer rings of the RA thin type are separable and fixed by special rivets.

Applications

  • Industrial Robotic arm, Reducer drive
  • Precision Turntable, NC rotary table
  • Rotation part of Machine tools
  • Inspection instrument, Medical equipment
  • Aviation equipment, Military radar, etc

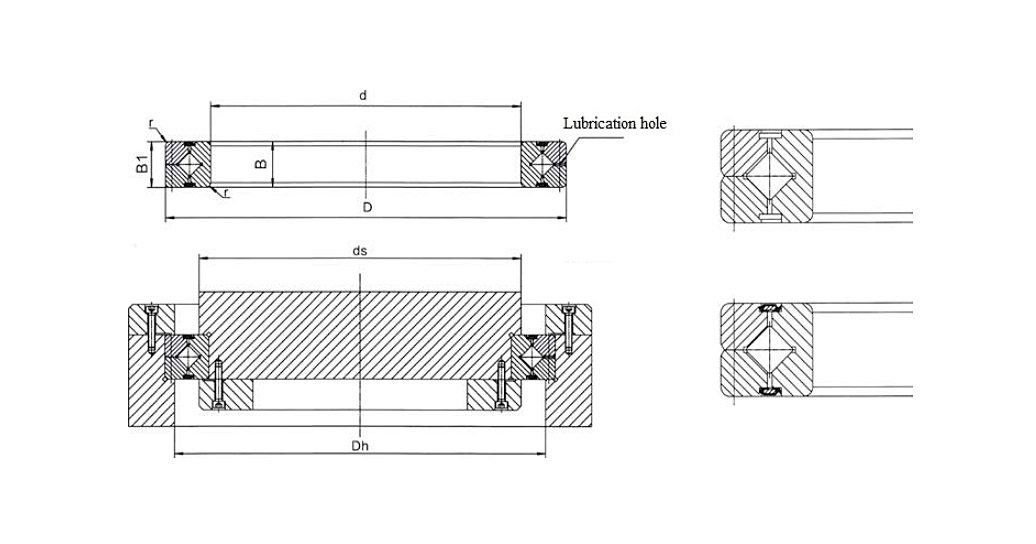

RA-Series(biaoge

TYPE Inner diameter Outer diameter Pitch diameter Height Chamfer Shoulder size Basic rated load(Radial) Weight
d D Dpw B r ds Dh Cr Kn Cor Kn KG
RA 5008 50 66 57 8 0.5 53.5 60.5 5.1 7.19 0.08
RA 6008 60 76 67 8 0.5 63.5 70.5 5.68 8.68 0.09
RA 7008 70 86 77 8 0.5 73.5 80.5 5.98 9.8 0.1
RA 8008 80 96 87 8 0.5 83.5 90.5 6.37 11.3 0.11
RA 9008 90 106 97 8 0.5 93.5 100.5 6.76 12.4 0.12
RA 10008 100 116 107 8 0.5 103.5 110.5 7.15 13.9 0.14
RA 11008 110 126 117 8 0.5 113.5 120.5 7.45 15 0.15
RA 12008 120 136 127 8 0.5 123.5 130.5 7.84 16.5 0.17
RA 13008 130 146 137 8 0.5 133.5 140.5 7.94 17.6 0.18
RA 14008 140 156 147 8 0.5 143.5 150.5 8.33 19.1 0.19
RA 15008 150 166 157 8 0.5 153.5 160.5 8.82 20.6 0.2
RA 16013 160 186 172 13 0.8 165 179 23.3 44.9 0.59
RA 17013 170 196 182 13 0.8 175 189 23.5 46.5 0.64
RA 18013 180 206 192 13 0.8 185 199 24.5 49.8 0.68
RA 19013 190 216 202 13 0.8 195 209 24.9 51.5 0.69
RA 20013 200 226 212 13 0.8 205 219 25.8 54.7 0.71

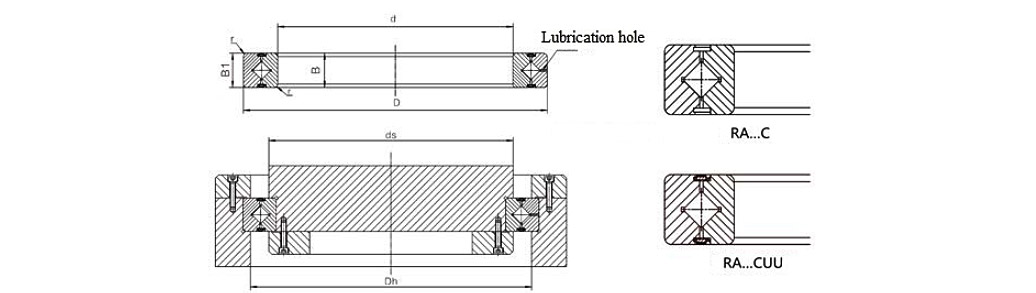

RA-C

RA-C type, the inner and outer rings are integral, and the outer ring has cracks.

RA-C(biaoge

TYPE Inner diameter Outer diameter Pitch diameter Height Chamfer Shoulder size Basic rated load(Radial) Weight
d D Dpw B r ds Dh Cr Kn Cor Kn KG
RA 5008C 50 66 57 8 0.5 53.5 60.5 5.1 7.19 0.08
RA 6008C 60 76 67 8 0.5 63.5 70.5 5.68 8.68 0.09
RA 7008C 70 86 77 8 0.5 73.5 80.5 5.98 9.8 0.1
RA 8008C 80 96 87 8 0.5 83.5 90.5 6.37 11.3 0.11
RA 9008C 90 106 97 8 0.5 93.5 100.5 6.76 12.4 0.12
RA 10008C 100 116 107 8 0.5 103.5 110.5 7.15 13.9 0.14
RA 11008C 110 126 117 8 0.5 113.5 120.5 7.45 15 0.15
RA 12008C 120 136 127 8 0.5 123.5 130.5 7.84 16.5 0.17
RA 13008C 130 146 137 8 0.5 133.5 140.5 7.94 17.6 0.18
RA 14008C 140 156 147 8 0.5 143.5 150.5 8.33 19.1 0.19
RA 15008C 150 166 157 8 0.5 153.5 160.5 8.82 20.6 0.2
RA 16013C 160 186 172 13 0.8 165 179 23.3 44.9 0.59
RA 17013C 170 196 182 13 0.8 175 189 23.5 46.5 0.64
RA 18013C 180 206 192 13 0.8 185 199 24.5 49.8 0.68
RA 19013C 190 216 202 13 0.8 195 209 24.9 51.5 0.69
RA 20013C 200 226 212 13 0.8 205 219 25.8 54.7 0.71
