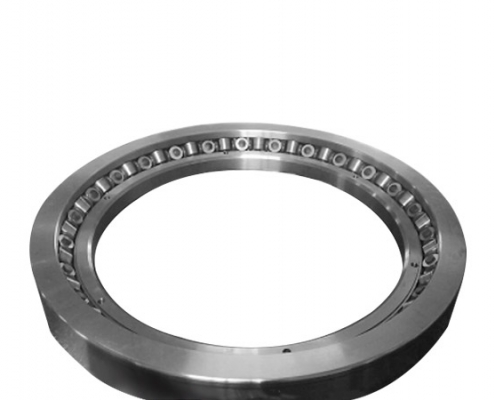

XR Series Crossed Roller Bearings

XR series Crossed taper roller bearings Machine tool precision bearings   Product Features Cross tapered roller bearing contains two sets of races and rollers brought together at high angles with […]

XR series Crossed taper roller bearings

Machine tool precision bearings

Product Features

Cross tapered roller bearing contains two sets of races and rollers brought together at high angles with alternate rollers facing in opposite directions. The height of cross section is similar to single-row bearing for conserving space and saving bearing housing material.And the steep-angle,tapered geometry results in a total effective bearing spread much greater than the width of the bearing itself.

Applications

  • Industrial Robotic arm, Reducer drive
  • Precision Turntable, CNC rotary table
  • Rotation part of Machine tools
  • Inspection instrument, Medical equipment
  • Aviation equipment, Military radar, etc

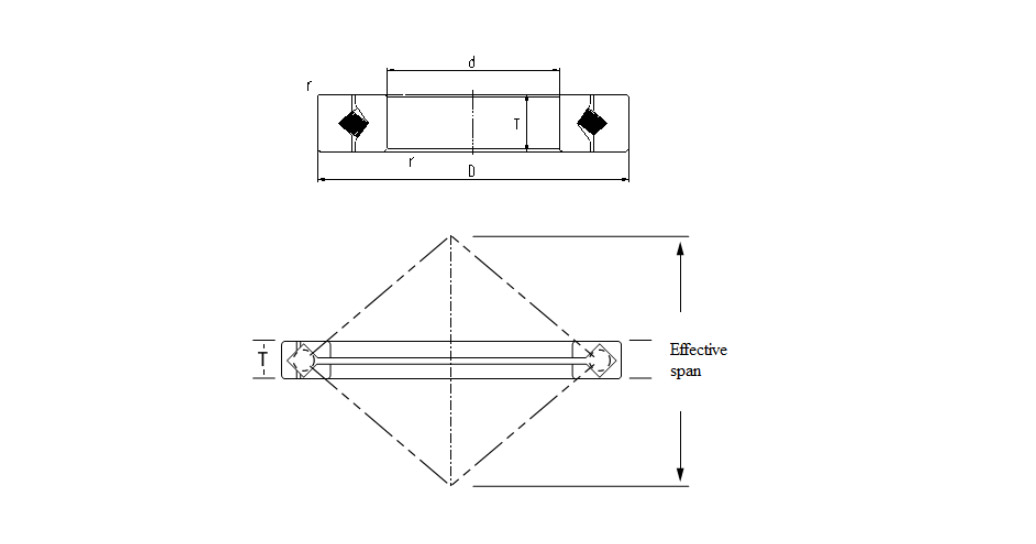

XR-Series(biagoe

TYPE Inner diameter Outer diameter Height Chamfer Basic rated load(Radial) Basic rated load(Axial) Limit speed Weight
d D B r r/min KG
XR496051 203.2 279.4 31.75 1.5 51.3 61.6 800 6.5
XR678052 330.2 457.2 63.5 3.3 100 123 620 35
XR766051 457.2 609.6 63.5 3.3 141 178 520 51
XR820060 580 760 80 6.4 215 234 300 100
XR855053 685.8 914.4 79.375 3.3 270 344 260 150
XR882055 901.7 1117.6 82.55 3.3 300 396 200 185
XR889058 1028.7 1327.15 109.22 3.3 405 534 160 400
XR897051 1549.4 1828.8 101.6 3.3 518 699 80 500
