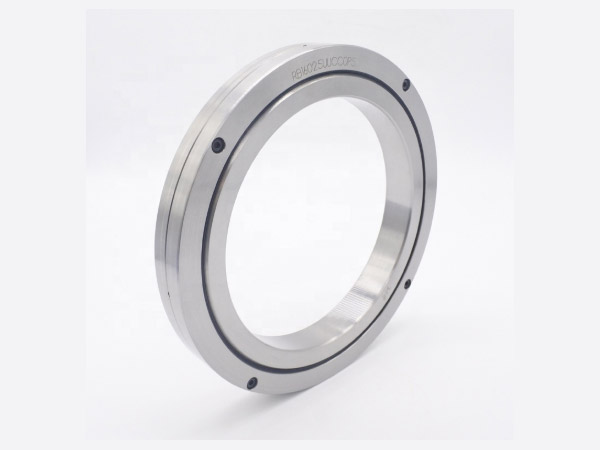

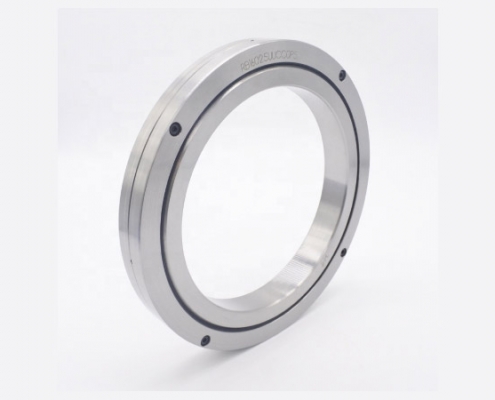

RB Series Crossed Roller Bearing

(Separable Outer Ring, Type for Inner Ring Rotation)

Product Features

HGB Crossed roller bearings are lightweight, compact bearings with thinnest possible inner and outer rings with high rigidity, because of its vertical arrangement of cylindrical rollers with a 90°V groove through the separate spacers in the deep groove rolling surface. This special design allows just one bearing to carry loads in all directions including radial, axial and moment loads.

Series Introduction

RB standard type is a bearing with thinnest possible inner and outer rings because the outer ring is split while the inner ring is integrated into the main body. It is being used in cases where a high rotational accuracy of the inner ring is required.

Applications

  • Industrial Robotic arm, Reducer drive
  • Precision Turntable, CNC rotary table
  • Rotation part of machine tools
  • Inspection instrument, Medical equipment
  • Aviation equipment, Military radar, etc

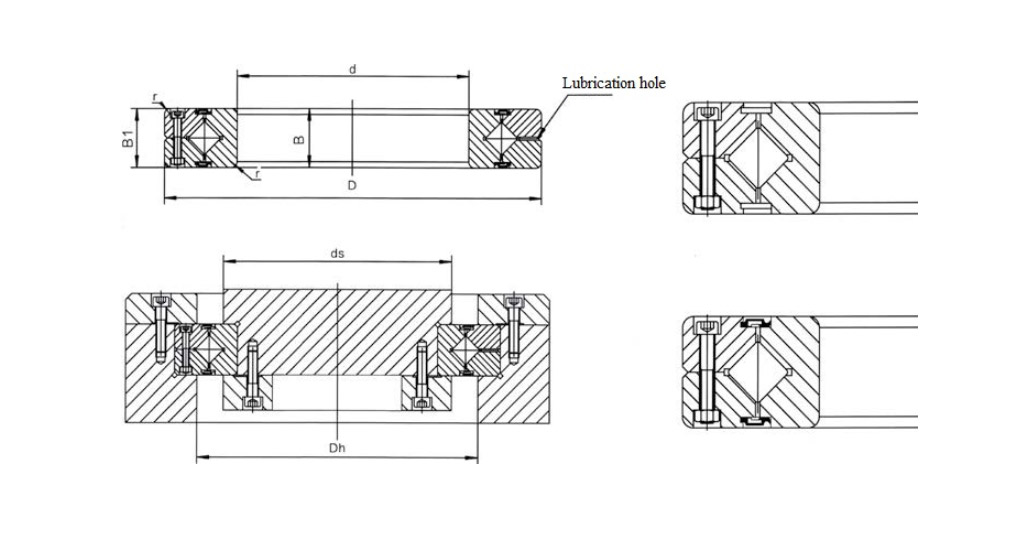

RB-Series(biaoge

TYPE Inner diameter Outer diameter Pitch diameter Height Chamfer Shoulder size Basic rated load(Radial) Weight
d D Dpw B r ds Dh Cr Kn Cor Kn KG
RB 2008 20 36 27 8 0.5 23.5 30.5 3.23 3.1 0.04
RB 2508 25 41 32 8 0.5 28.5 35.5 3.63 3.83 0.05
RB 3010 30 55 41.5 10 0.6 37 47 7.35 8.36 0.12
RB 3510 35 60 46.5 10 0.6 41 51.5 7.64 9.12 0.13
RB 4010 40 65 51.5 10 0.6 47.5 57.5 8.33 10.6 0.16
RB 4510 45 70 56.5 10 0.6 51 61.5 8.62 11.3 0.17
RB 5013 50 80 64 13 0.6 57.4 72 16.7 20.9 0.27
RB 6013 60 90 74 13 0.6 68 82 18 24.3 0.3
RB 7013 70 100 84 13 0.6 78 92 19.4 27.7 0.35
RB 8016 80 120 98 16 0.6 91 111 30.1 42.1 0.7
RB 9016 90 130 108 16 1 98 118 31.4 45.3 0.75
RB 10016 100 140 119.3 16 1 109 129 31.7 48.6 0.83
RB 10020 100 150 123 20 1 113 133 33.1 50.9 1.45
RB 11012 110 135 121.8 12 0.6 117 127 12.5 24.1 0.4
RB 11015 110 145 126.5 15 0.6 122 136 23.7 41.5 0.75
RB 11020 110 160 133 20 1 120 143 34 54 1.56
RB 12016 120 150 134.2 16 0.6 127 141 24.2 43.2 0.72
RB 12025 120 180 148.7 25 1.5 133 164 66.9 100 2.62
RB 13015 130 160 144.5 15 0.6 137 152 25 46.7 0.72
RB 13025 130 190 158 25 1.5 143 174 69.5 107 2.82
RB 14016 140 175 154.8 16 1 147 162 25.9 50.1 1
RB 14025 140 200 168 25 1.5 154 185 74.8 121 2.96
RB 15013 150 180 164 13 0.6 157 172 27 53.6 0.68
RB 15025 150 210 178 25 1.5 164 194 76.8 128 3.16
RB 15030 150 230 188 30 1.5 173 211 100 156 5.3
RB 16025 160 220 188.6 25 1.5 173 204 81.7 135 3.14
RB 17020 170 220 191 20 1.5 184 198 29 62.1 2.21
RB 18025 180 240 210 25 1.5 195 225 84 143 3.44
RB 19025 190 240 211.9 25 1 202 222 41.7 82.9 2.99
RB 20025 200 260 230 25 2 215 245 84.2 157 4
RB 20030 200 280 240 30 2 221 258 114 200 6.7
RB 20035 200 295 247.7 35 2 225 270 151 252 9.6
RB 22025 220 280 250.1 25 2 235 265 92.3 171 4.1
RB 24025 240 300 269 25 2.5 256 281 68.3 145 4.5
RB 25025 250 310 277.5 25 2.5 265 290 69.3 150 5
RB 25030 250 330 287.5 30 2.5 269 306 126 244 8.1
RB 25040 250 355 300.7 40 2.5 275 326 195 348 14.8
RB 30025 300 360 328 25 2.5 315 340 76.3 178 5.9
RB 30035 300 395 345 35 2.5 322 368 183 367 13.4
RB 30040 300 405 351.6 40 2.5 326 377 212 409 17.2
RB 35020 350 400 373.4 20 2.5 363 383 54.1 143 3.9
RB 40035 400 480 440.3 35 2.5 422 459 156 370 14.5
RB 40040 400 510 453.4 40 2.5 428 479 241 531 23.5
RB 45025 450 500 474 25 1 464 484 61.7 182 6.6
RB 50025 500 550 524.2 25 1 514 534 65.5 201 7.3
RB 50040 500 600 548.8 40 2.5 526 572 239 607 26
RB 50050 500 625 561.6 50 2.5 536 587 267 653 41.7
RB 60040 600 700 650 40 3 627 673 264 721 29
RB 70045 700 815 753.5 45 3 731 777 281 836 46
RB 80070 800 950 868.1 70 4 836 900 468 1330 105
RB 90070 900 1050 969 70 4 937 1001 494 1490 120
RB 1000110 1000 1250 1114 110 5 1057 1171 1220 3220 360
RB 1250110 1250 1500 1365.8 110 5 1308 1423 1350 3970 440
