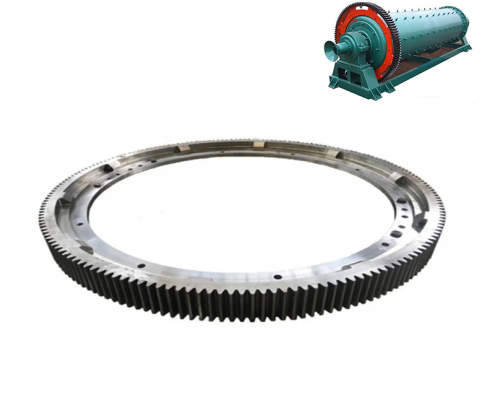

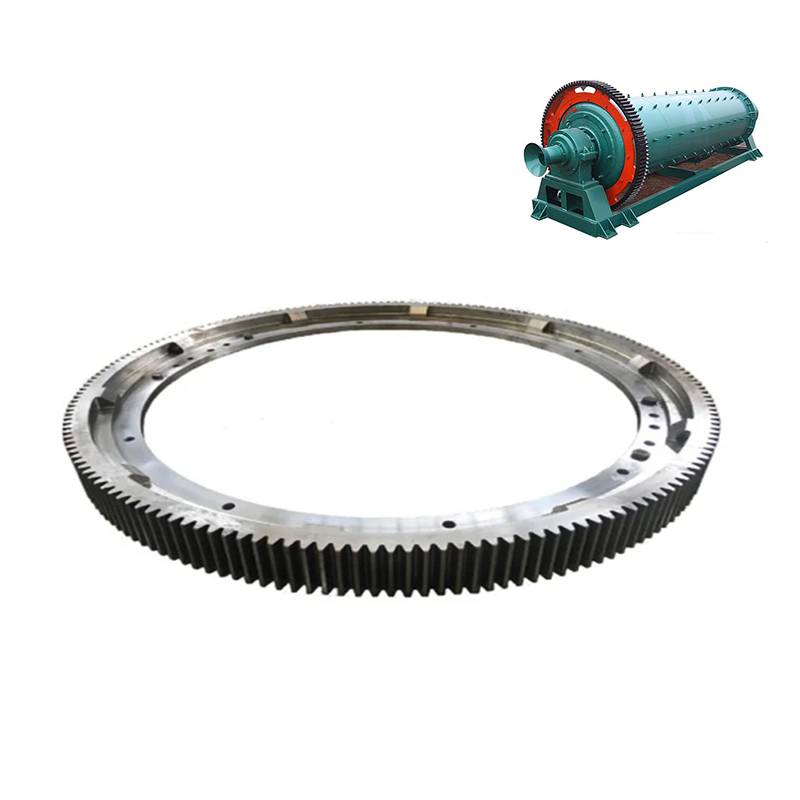

Ball mill gear ring

Produce description

Ball mill ring gears are usually cast from high-strength steel and have excellent wear resistance and impact resistance. Its design fully takes into account the transmission characteristics and working environment of the ball mill, ensuring close cooperation and efficient transmission between the ring gear and the gear. At the same time, the ball mill ring gear has been carefully processed and strictly tested to ensure stable and reliable product quality.
Advantages and features
1. Its high strength and wear resistance enable the ring gear to withstand larger loads and impact forces, extending the service life of the equipment;
2. The optimized design of the ring gear improves transmission efficiency and reduces energy consumption;
3. The installation and maintenance of the ring gear are also relatively simple, which reduces the operating cost of the equipment.
In terms of processing technology, the manufacturing process of the ball mill ring gear strictly follows the principle of fine processing. First, select appropriate wooden molds for styling design based on customer needs and equipment requirements: Then, through smelting
The basic shape of the ring gear is formed through steps such as refining, pouring, heat preservation, and sand removal from the pit; then, heat treatment is performed to optimize the structure and hardness of the gear garden; finally, rough machining and finishing are performed to achieve the accuracy and surface quality required by the product.

Material C45,42Crmo,40Cr,20CrMnTi,Stainless steel and so on as per your requests
Heat treatment Carburzing,Induction,Flame,Nitriding……
Process Forging,Machining,Hobbing,Milling,Shaving,Grinding,Heating treating……
Tooth Profile spur gear/helical gear/customized
Gear Machining Gear Hobbing,Gear Milling,CNC Gear Milling,Gear Cutting,Spiral gear cutting,Gear Cutting
Gear precision Oridinary,8e,7e……
Warranty 12momths
Payment term T/T is our first choice
Application Industry Machinery,Manufacturing Plant, Machinery Repair Shops
Product advantage 1.Heavy load capacity,long lifespan.

2.High precision,large diameter and module .

3.stable transmission, low impact, vibration and noise

Packing details 1. Filling with anti-rust oil

2. Corved with Plastic paper

3. Corved with kraft paper

4. Corved with Blue tie

5. Put in wooden box

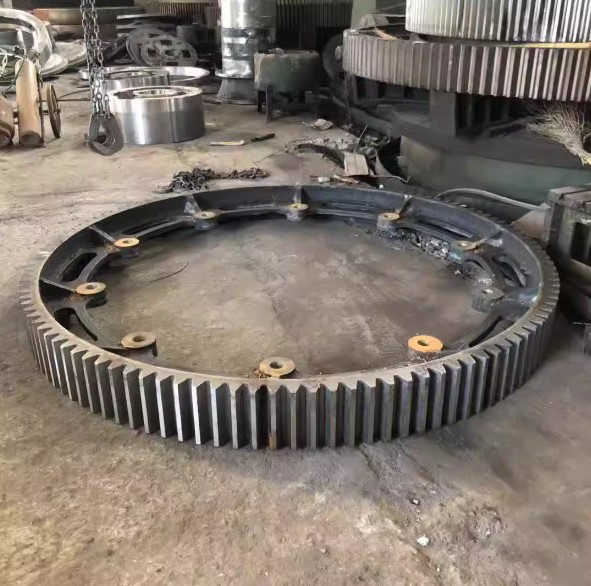

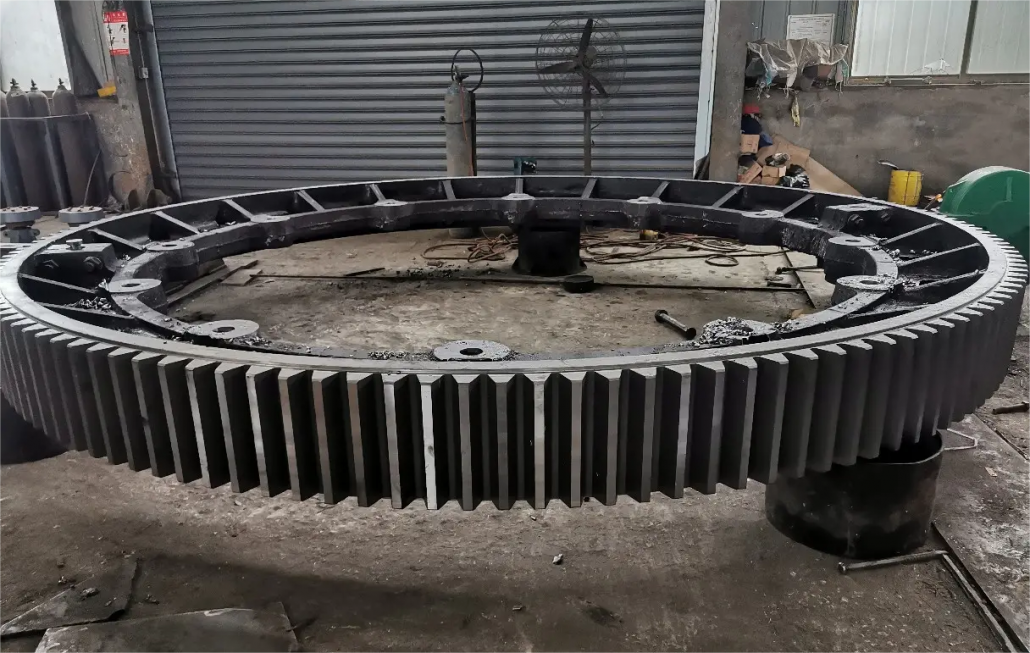

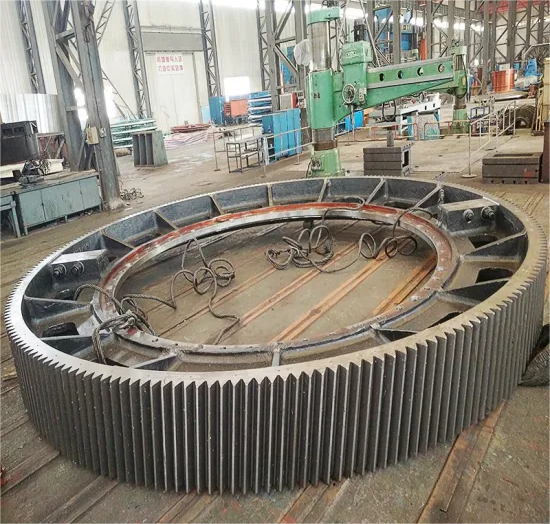

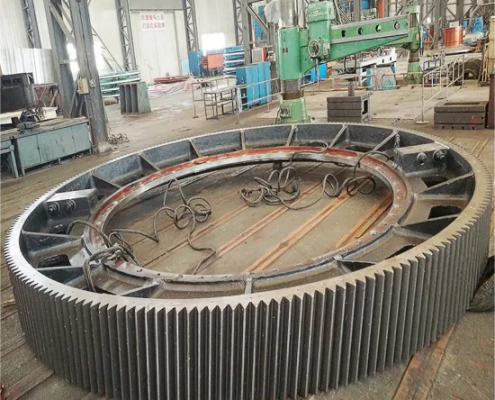

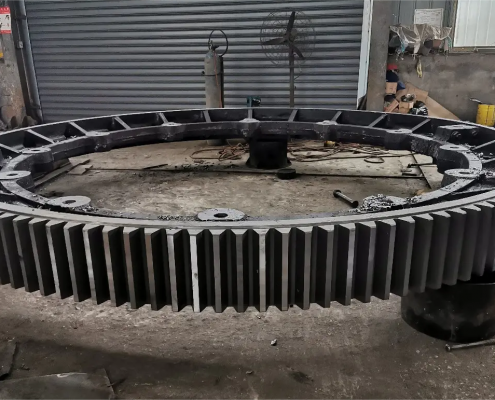

Product display


1.Quality Assurance

High grand raw material selection and strict material inspection.The equipment can meet all the processing procedures and fully achieve production according to the drawing.

2.Reasonable Price

The price is the most favorable under the same quality.The quality is the best under the same price.

3.Delivery Time Guarantee

Effcient production arrangment and inspection to guarantee the timely shippment.

4.Team Service

Engneers with more than ten years of experience in the industry. technical support can be provided before, during and after sales. Delivery and goods tracking support can be provided 24*7 online service support can be provided to solve doubts

About us

Our Customers


1.Q: Are you trading company or manufacturer ?
A: We are professional manufacturer with 20 years’ experience.
2.Q: How long is your delivery time?
A: Generally it is 4-5 days if the goods are in stock. or it is 45 days if the goods are not instock, Also it is according to quantity.
3.Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample, it is extra.
4.Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance, balance before shipment.
5.Q: Can you provide special customization according to the working conditions?
A: Sure, we can design and produce for different working conditions.
6.Q: How about your guarantee?
A: We provide lifelong after-sales technical service.
