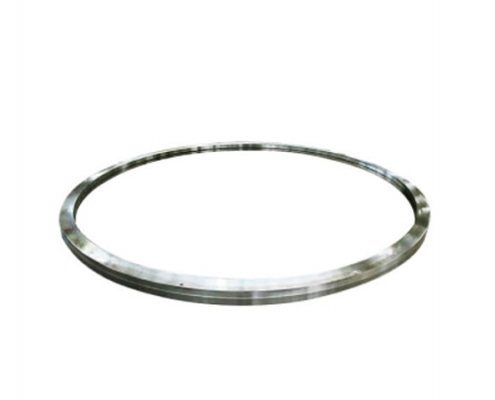

Large Thrust Ball Bearing
Large Thrust Ball Bearing

Large Thrust Ball Bearing

Bearing code Dimensions Rated load Limited speed Small load constant Weight Current model Original model d d1 D D3 H rmin a Dynamic load C Static load Co Grease kg mm KN r/min A 5617/650 1687/6 […]

Message Online Chat

Product Description

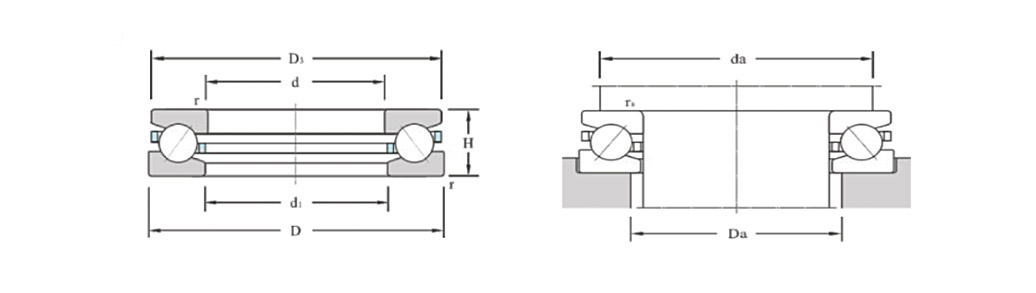

Large-Thrust-Ball-Bearing(biaoge

Bearing code Dimensions Rated load Limited speed Small load constant Weight
Current model Original model d d1 D D3 H rmin a Dynamic load C Static load Co Grease kg
mm KN r/min A
5617/650 1687/650 650 720 880 800 140 6 60° 1105 7692 260 370 7.092 194
5692/670 91682/670 670 740 900 830 140 6 45° 1260 6084 250 360 53 206
5691/750 91681/750 750 780 900 870 90 4 60° 587 4620 340 480 40 94.4
5611/800 1681/800 800 840 950 910 120 4 60° 850 6710 200 240 6.71 140
5692/800 91682/800 870 1060 990 155 7.5 60° 1145 8868 180 250 150 293
5617/810 1687/810 810 880 1030 960 110 7.5 45° 780 4080 280 400 150 176
5691/950 91682/950 950 1040 1250 1160 180 7.5 45° 1500 9168 120 170 60 432
5691/1000 91681/1000 1000 1040 1180 1140 109 5 45° 1076 6516 250 360 200 177
5691/1120 91681/1120 1120 1170 1320 1270 122 5 60° 1018 10272 180 260 10.272 241
5617/1270 1687/1270X 1270 1290 1430 1410 110 4.5 60° 1100 10859 170 250 210
5617/1600 1687/1600 1600 1600 1760 1760 90 6 60° 682 8052 210 300 8.052 248
5617/1860 1687/1860 1860 1900 2100 2060 140 4.5 60° 1272 19370 93 130 19.07 577
5617/2100 1687/2100 2100 2120 2280 2260 150 4.5 60° 1200 19300 78 111 19 563
5610/2500 11689/2500 2500 2520 2700 2680 160 5 60° 1584 26640 57 81 26.64 732
5617/2530V/HG2 2530 2564 2650 2624 75 4 60° 954 7500 50 80 174
5617/3000/YA 1687/3000 3000 3000 3270 3270 140 7.5 60° 1464 24240 52 75 24.24 1262
