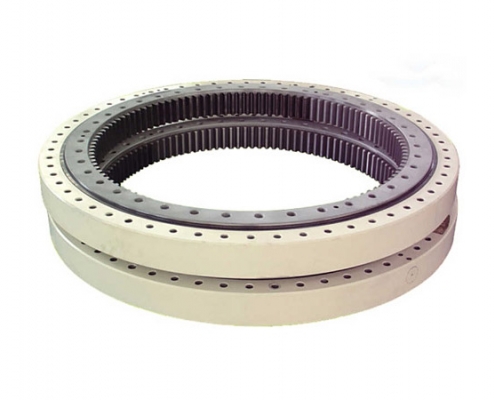

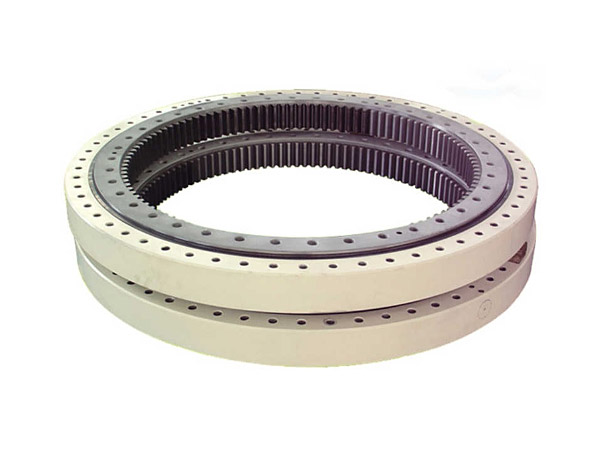

Product Description

Structural characteristics, performance and scope of application

The double row ball slewing bearing has three seat rings. The steel balls and isolators can be directly arranged into the upper and lower raceways. According to the stress conditions, the upper and lower rows of steel balls with different diameters are arranged. This kind of open assembly is very convenient. The bearing angle of the upper and lower arc raceway is 75 degrees. It can bear a great deal of axial force and overturning moment. When the radial force is greater than 0.1 times the axial force, the raceway must be specially designed. The axial and radial dimensions of the double row ball slewing bearing are relatively large and the structure is fastened. It is especially suitable for handling tower cranes, truck cranes and other loading machines that require medium or above diameters, military products.

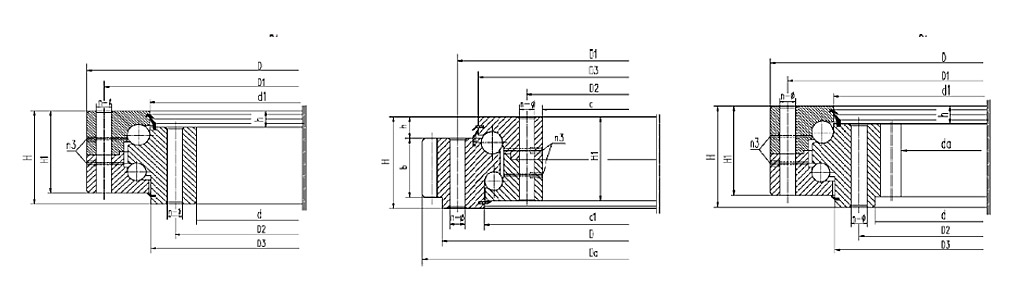

Double Row Ball（biaoge

Bearing type Boundary dimensions Mounting hole diameter Structure dimensions Gear parameters Mass    KG
Non-gear type External gear type Internal gear type D d H D1 D2 n φ D3 d1 H1 H n3 m Ext gear Int gear b x
mm mm mm mm Da Z da Z mm
020.25.500.** 021.25.500.** 023.25.500.** 616 384 106 580 420 20 18 523 517 96 26 4/M10*1 5 645 126 355 72 60 +0.5 100
022.25.500.** 024.25.500.** 483 477 6 648 105 348 59 60 +0.5 100
020.20.560.** 021.20.560.** 023.20.560.** 676 444 106 640 480 20 18 583 577 96 26 4/M10*1 5 705 138 415 84 60 +0.5 115
022.20.560.** 024.20.560.** 543 537 6 708 115 408 69 60 +0.5 115
020.25.630.** 021.25.630.** 023.25.630.** 746 514 106 710 550 24 18 653 647 96 26 4/M10*1 6 792 129 480 81 60 +0.5 130
022.25.630.** 024.25.630.** 613 607 8 792 96 472 60 60 +0.5 130
020.25.710.** 021.25.710.** 023.25.710.** 826 594 106 790 630 24 18 733 727 96 26 4/M10*1 6 864 141 558 94 60 +0.5 140
022.25.710.** 024.25.710.** 693 687 8 864 105 552 70 60 +0.5 140
020.30.800.** 021.30.800.** 023.30.800.** 942 658 124 898 702 30 22 828 822 114 29 6/M10*1 8 984 120 616 78 80 +0.5 200
022.30.800.** 024.30.800.** 778 771 10 990 96 610 62 80 +0.5 200
020.30.900.** 021.30.900.** 023.30.900.** 1042 758 124 998 802 30 22 928 922 114 29 6/M10*1 8 1088 133 712 90 80 +0.5 250
022.30.900.** 024.30.900.** 878 871 10 1090 106 710 72 80 +0.5 250
020.30.1000.** 021.30.1000.** 023.30.1000.** 1142 858 124 1098 902 36 22 1028 1022 114 29 6/M10*1 10 1200 117 810 82 80 +0.5 300
022.30.1000.** 024.30.1000.** 978 971 12 1200 97 792 67 80 +0.5 300
020.30.1120.** 021.30.1120.** 023.30.1120.** 1262 978 124 1218 1022 36 22 1148 1142 114 29 6/M10*1 10 1320 129 920 93 80 +0.5 340
022.30.1120.** 024.30.1120.** 1098 1091 12 1320 107 912 77 80 +0.5 340
020.40.1250.** 021.40.1250.** 023.40.1250.** 1426 1074 160 1374 1126 40 26 1286 1282 150 39 6/M10*1 12 1500 122 1008 85 90 +0.5 580
022.40.1250.** 024.40.1250.** 1218 1214 14 1498 104 1008 73 90 +0.5 580
020.40.1400.** 021.40.1400.** 023.40.1400.** 1576 1224 160 1524 1272 40 26 1436 1432 150 39 6/M10*1 12 1644 134 1152 97 90 +0.5 650
022.40.1400.** 024.40.1400.** 1368 1364 14 1652 115 1148 83 90 +0.5 650
020.40.1600.** 021.40.1600.** 023.40.1600.** 1776 1424 160 1724 1476 45 26 1636 1632 150 39 8/M10*1 14 1848 129 1344 97 90 +0.5 750
022.40.1600.** 024.40.1600.** 1568 1564 16 1856 113 1344 85 90 +0.5 750
020.40.1800.** 021.40.1800.** 023.40.1800.** 1976 1624 160 1924 1676 45 26 1836 1832 150 39 8/M10*1 14 2058 144 1540 111 90 +0.5 820
022.40.1800.** 024.40.1800.** 1768 1764 16 2064 126 1536 97 90 +0.5 820
020.50.2000.** 021.50.2000.** 023.50.2000.** 2215 1785 190 2149 1851 48 33 2038 2032 178 47 8/M10*1 16 2304 141 1696 107 120 +0.5 1150
022.50.2000.** 024.50.2000.** 1968 1962 18 2304 125 1692 95 120 +0.5 1150
020.50.2240.** 021.50.2240.** 023.50.2240.** 2455 2025 190 2389 2091 48 33 2278 2272 178 47 8/M10*1 16 2544 156 1936 122 120 +0.5 1500
022.50.2240.** 024.50.2240.** 2208 2202 18 2556 139 1926 108 120 +0.5 1500
020.50.2500.** 021.50.2500.** 023.50.2500.** 2715 2285 190 2649 2351 56 33 2538 2532 178 47 8/M10*1 18 2804 153 2196 123 120 +0.5 1500
022.50.2500.** 024.50.2500.** 2468 2462 20 2820 138 2180 110 120 +0.5 1500
020.50.2800.** 021.50.2800.** 023.50.2800.** 3015 2585 190 2949 2651 56 33 2838 2832 178 47 8/M10*1 18 3114 170 2484 139 120 +0.5 1900
022.50.2800.** 024.50.2800.** 2768 2762 20 3120 153 2480 125 120 +0.5 1900
020.60.3150.** 021.60.3150.** 023.60.3150.** 3428 2872 226 3338 2962 56 45 3198 3192 214 56 8/M10*1 20 3540 174 2760 139 150 +0.5 3300
022.60.3150.** 024.60.3150.** 3108 3102 22 3542 158 2750 126 150 +0.5 3300
020.60.3550.** 021.60.3550.** 023.60.3550.** 3828 3272 226 3738 3362 56 45 3598 3592 214 56 8/M10*1 20 3940 194 3160 159 150 +0.5 3700
022.60.3550.** 024.60.3550.** 3508 3502 22 3938 176 3168 145 150 +0.5 3700
020.60.4000.** 021.60.4000.** 023.60.4000.** 4278 3722 226 4188 3812 60 45 4048 4042 214 56 10/M10*1 22 4400 197 3608 165 150 +0.5 4200
022.60.4000.** 024.60.4000.** 3958 3952 25 4400 173 3600 145 150 +0.5 4200
020.60.4500.** 021.60.4500.** 023.60.4500.** 4778 4222 226 4688 4312 60 45 4548 4542 214 56 10/M10*1 22 4884 219 4114 188 150 +0.5 4700
022.60.4500.** 024.60.4500.** 4458 4452 25 4900 193 4100 165 150 +0.5 4700
