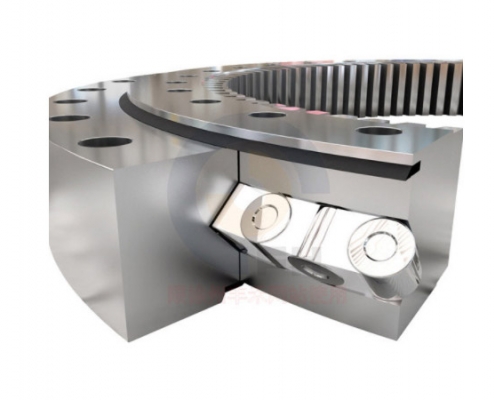

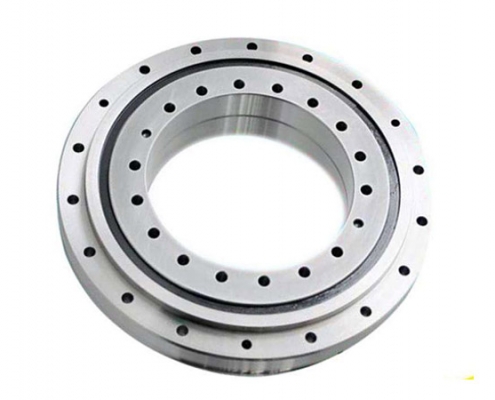

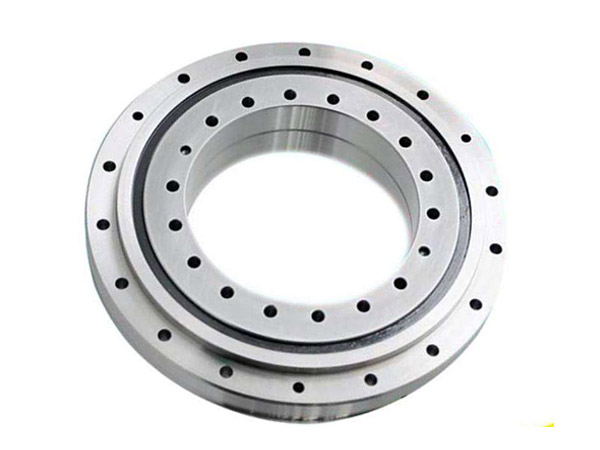

Single Row Cross Roller Slewing Bearing (HJ series)

Bearing type Boundary dimensions Mounting hole diameter Structure dimensions Gear parameters Mass    KG Non-gear type External gear type Internal gear type D d H D1 D2 n φ DL H1 h n3 b m […]

HJ-series(biaoge02

Bearing type Boundary dimensions Mounting hole diameter Structure dimensions Gear parameters Mass    KG
Non-gear type External gear type Internal gear type D d H D1 D2 n φ DL H1 h n3 b m Ext gear Int gear
mm mm mm mm mm x Da
mm
Z x da
mm
Z
HJB.20.625 HJW.20.625 HJN.20.625 725 525 80 685 565 18 18 625 68 12 3 60 5 +1.25 752 146 +0.35 498.8 101 100
HJW.20.625A HJN.20.625A 6 +1.00 756 122 +0.35 496.7 84
HJB.20.720 HJW.20.720 HJN.20.720 820 620 80 780 660 18 18 720 68 12 3 60 6 +1.25 860 139 +0.35 586.6 99 120
HJW.20.720A HJN.20.720A 8 +0.85 861 104 +0.35 582.3 74
HJB.30.820 HJW.30.820 HJN.30.820 940 705 95 893 749 24 20 820 83 12 4 70 6 +1.25 980 159 +0.35 664.5 112 210
HJW.30.820A HJN.30.820A 10 +0.85 986 95 +0.35 658 67
HJB.30.880 HJW.30.880 HJN.30.880 1000 760 95 956 800 24 20 880 83 12 4 70 8 +1.0 1048 127 +0.35 718.2 91 230
HJW.30.880A HJN.30.880A 10 +0.85 1046 101 +0.35 707.9 72
HJB.30.1020 HJW.30.1020 HJN.30.1020 1170 875 95 1120 930 24 22 1020 80 15 4 70 8 +1.25 1219 148 +0.35 830.1 105 300
HJW.30.1020A HJN.30.1020A 10 +1.00 1219 118 +0.35 827.8 84
HJB.36.1220 HJW.36.1220 HJN.36.1220 1365 1075 120 1310 1130 36 24 1220 105 15 6 90 10 +1.25 1425 138 +0.35 1027.8 104 450
HJW.36.1220A HJN.36.1220A 12 +0.85 1436 116 +0.35 1017.3 86
HJB.36.1435 HJW.36.1435 HJN.36.1435 1595 1278 120 1535 1335 36 26 1435 105 15 6 90 12 +1.0 1656 134 +0.35 1221.1 103 610
HJW.36.1435N HJN.36.1435N 14 +0.85 1661 115 +0.35 1214.8 88
HJB.45.1540 HJW.45.1540 HJN.45.1540 1720 1360 140 1660 1420 42 26 1540 122 18 6 110 12 +1.4 1781 144 +0.35 1293.1 109 732
HJW.45.1540N HJN.45.1540N 14 +1.0 1791 124 +0.35 1284.8 93
HJB.45.1700 HJW.45.1700 HJN.45.1700 1875 1525 140 1815 1585 42 29 1700 122 18 6 110 14 +1.0 1945 135 +0.35 1452.7 105 844
HJW.45.1700A HJN.45.1700A 16 +1.0 1951 118 +0.35 1452.3 92
HJB.45.1880 HJW.45.1880 HJN.45.1880 2100 1665 160 2030 1740 48 32 1880 140 20 6 115 14 +1.25 2190 152 +0.35 1592.6 115 1400
HJW.45.1880A HJN.45.1880A 18 +1.0 2195 118 +0.35 1579.9 89
HJB.45.2115 HJW.45.2115 HJN.45.2115 2325 1900 160 2245 1980 48 32 2115 140 20 6 115 16 +1.25 2407 146 +0.35 1804.1 114 1600
HJW.45.2115A HJN.45.2115A 20 +1.0 2418 117 +0.35 1795.4 91
HJB.45.2370 HJW.45.2370 HJN.45.2370 2600 2146 180 2520 2220 48 32 2370 158 22 6 130 18 +1.25 2307 146 +0.35 2065.6 116 2100
HJW.45.2370A HJN.45.2370A 22 +1.0 2704 119 +0.35 2040.9 94
HJB.45.2600 HJW.45.2600 HJN.45.2600 2835 2365 180 2750 2450 54 36 2600 158 22 6 130 18 +1.25 2942 159 +0.35 2263.5 127 2400
HJW.45.2600A HJN.45.2600A 22 +1.0 2947 130 +0.35 2260.8 104
HJB.50.2820 HJW.50.2820 HJN.50.2820 3085 2555 200 3000 2640 54 36 2820 178 22 6 150 20 +1.25 3188 155 +0.35 2455 124 3400
HJW.50.2820A HJN.50.2820A 25 +1.0 3198 124 +0.35 2444.1 99
HJB.50.3120 HJW.50.3120 HJN.50.3120 3400 2840 200 3310 2930 54 36 3120 178 22 6 150 22 +1.25 3507 155 +0.35 2722 125 4000
HJW.50.3120A HJN.50.3120A 25 +1.25 3510 136 +0.35 2719 110
HJB.50.3580 HJW.50.3580 HJN.50.3580 3920 3240 240 3820 3340 60 40 3580 218 22 6 190 22 +1.25 4036 179 +0.35 3118.4 143 6700
HJW.50.3580A HJN.50.3580A 25 +1.25 4036 157 +0.35 3118.8 126
HJB.50.4030 HJW.50.4030 HJN.50.4030 4370 3690 240 4270 3790 66 40 4030 218 22 6 190 22 +1.25 4521 201 +0.35 3558.3 163 7700
HJW.50.4030A HJN.50.4030A 28 +1.25 4522 157 +0.35 3549 128
HJB.50.4540 HJW.50.4540 HJN.50.4540 4860 4210 240 4760 4310 72 40 4540 218 22 6 190 22 +1.25 4983 222 +0.35 4042.2 185 8760
HJW.50.4540A HJN.50.4540A 30 +1.25 4993 162 +0.35 4042.4 136
